F3012M 12 Way (100A Main Switch)
F3012M 12 Way (100A Main Switch)
Regular price
£38.01 GBP
Regular price
Sale price
£38.01 GBP
Unit price
/
per
- FREE UK DELIVERY OVER £75
- NEXT DAY SHIPPING BEFORE 1PM
Couldn't load pickup availability

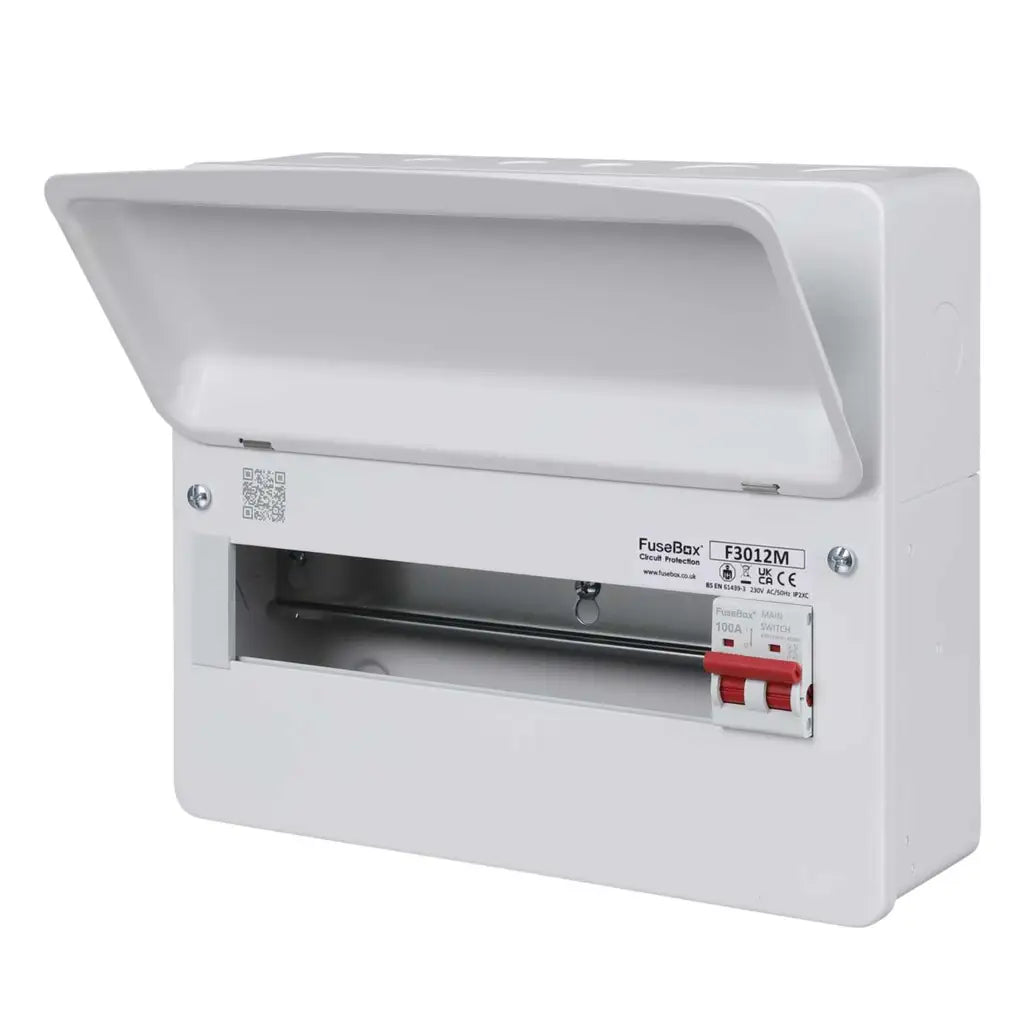

Professional 12-Way Consumer Unit with 100A Main Switch - F3012M
The FuseBox F3012M is a premium high-capacity consumer unit engineered for demanding residential and light commercial electrical installations. This robust 12-way unit combines exceptional build quality with professional-grade features.
Ideal for larger homes, extensions, commercial premises, workshops, and any installation requiring multiple circuit protection. Suitable for new builds and electrical system upgrades.
Choose Fusebox Store for premium electrical distribution equipment with comprehensive support and fast UK delivery.
Key Features
Key Features
Brand: Fusebox
Colour: White
Dimensions (HWD): 259mm x 306mm x 113mm
- 12 usable ways including space for future SPD
- IP2XC finger-safe internal protection rating

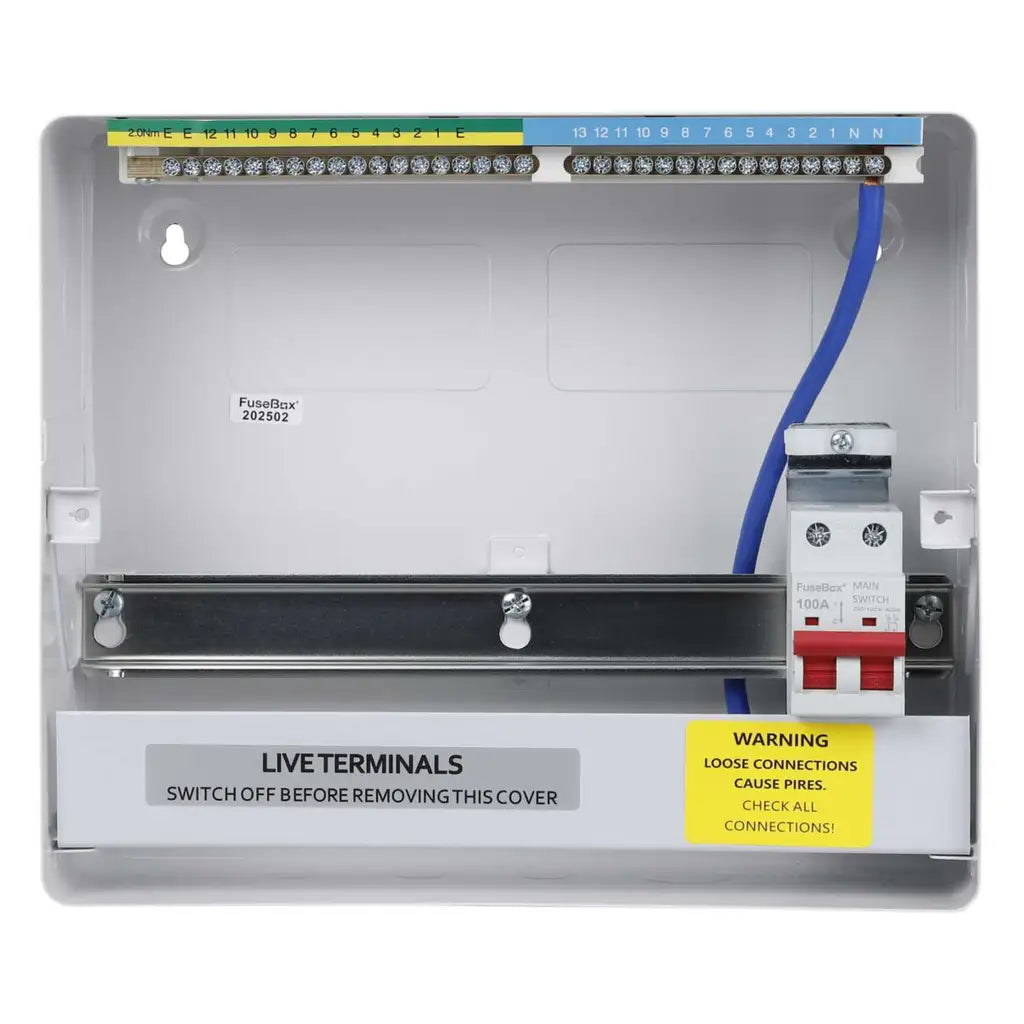

- Earth and neutral terminal bars positioned at top
- Supplied with 100A main switch, busbar, DIN rail and tail clamp
- Round knockouts: 20mm & 32mm top, bottom and rear; 40mm on sides
- Removable, raised DIN rail for quick device installation
- Upgraded reinforced grommet strip and captive front cover screws
- Steel enclosure with RAL9001 powder-coated finish
- Extra height to accept standard and mini RCBOs
- Complies with BS-EN-61439-3 and 18th Edition regulations
- Includes circuit identification labels and busbar shroud
