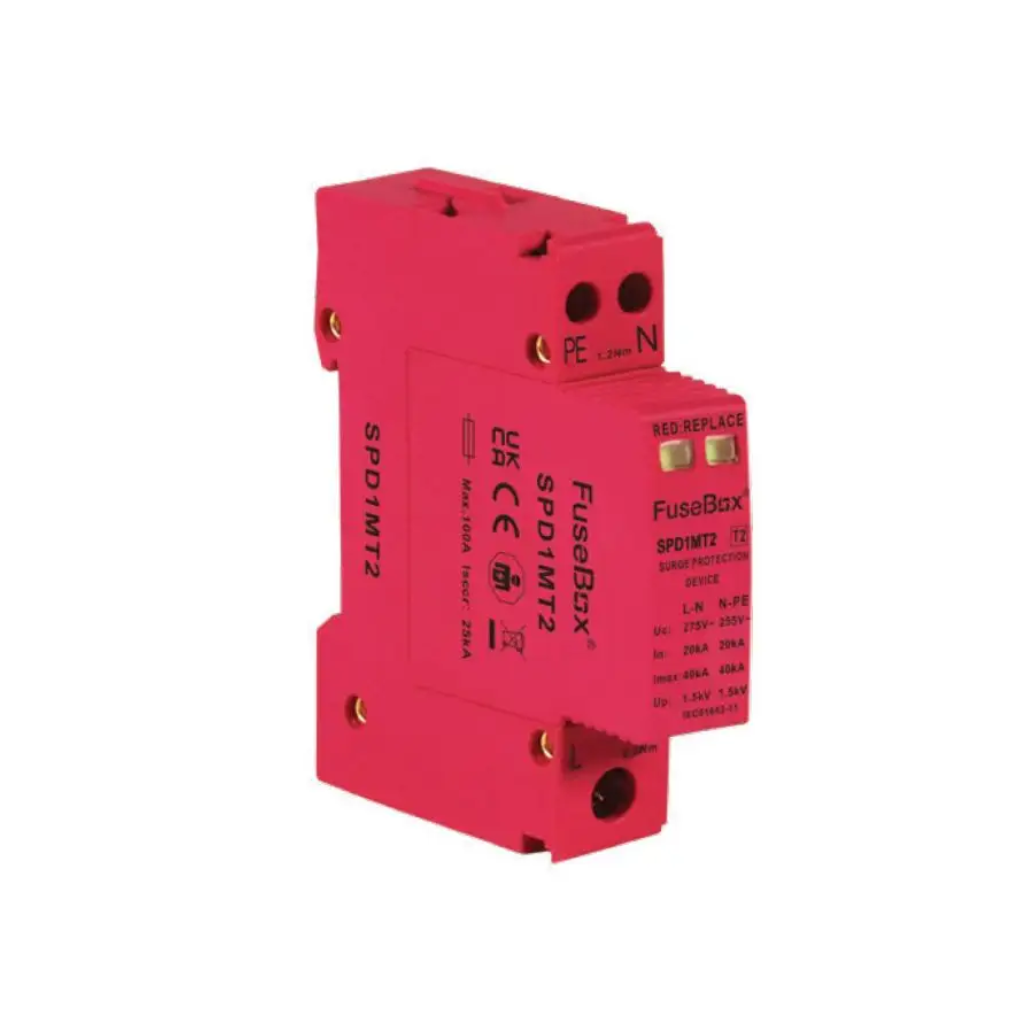

SPD1M2T Type 2 Single Module Surge Protection Device
The FuseBox SPD1M2T is a professional-grade Type 2 surge protection device designed to protect electrical installations from voltage surges and transient overvoltages. This compact single-module SPD provides comprehensive protection while saving valuable space in consumer units and distribution boards.
The SPD1M2T provides essential surge protection in the most compact format available. Its single-module design is perfect for space-constrained installations, while the direct busbar connection eliminates the need for additional protection devices.
This SPD is particularly valuable in today's electronic-rich environments where sensitive equipment like computers, LED lighting, and smart home devices require protection from damaging voltage surges.
Key Features
Key Features
Brand: Fusebox
Dimensions (HWD): 90mm x 18mm x 70mm
- Single-module Type 2 SPD mounts directly to busbar (no MCB required)
- IP20 finger-safe protection rating
- Terminal capacity: L 16 mm², N/PE 10 mm²
- DIN-rail mountable with direct busbar connection
- Flag indicator shows green (good) or red (replace)
- Suitable for TN-S, TNC‑S, TNC and TT earthing systems
- Complies with EN 61643‑11 standards
- Space-saving design preserves usable unit modules
- Fast response (<25 ns) transient voltage protection
- Metal Oxide Varistor (MOV) and Gas Discharge Tube (GDT) technology
- Enhanced surge protection capacity (20 kA In / 40 kA Imax)
- Ideal for residential and light commercial consumer units
